Double cable multi flap grab

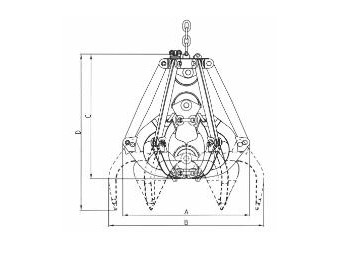

Double cable multi flap grab plan

Double cable multi flap grab

Application scope: Double cable multi flap grab bucket, suitable for small cranes, with deep feeding, can grab large bulk cargo, usually scrap steel, coal, ore, etc.

+86-13585000194

Product Details

Application scope

Double cable multi flap grab bucket, suitable for small cranes, with deep feeding and the ability to grab larger bulk cargo, usually scrap steel, coal, ore, etc.

Technical parameter

Crane load		3.2t			5t			10t
Material specific gravity (t/m3)		0.6-0.8	1.0-1.5	2.5-3.2	0.6-0.8	1.5	2.5-3.2	0.6-0.8	1.5	2.5-3.2
Bucket capacity (m3)		1.5	1.2	0.75	3	2.8	1	6.0	4.5	2
Self weight (kg)		2200	2000	2000	3200	2200	2500	5700	5400	5000
Pulley diameter (mm)		Ø315	Ø315	Ø315	Ø400	Ø400	Ø400	Ø630	Ø630	Ø630
Magnification ratio		3	3or4	4or5	3	4or5	4or5	3	3or4	4or5
Closed rope diameter		Ø16-18	Ø16-18	Ø16-18	Ø18-20	Ø18-20	Ø18-20	Ø28	Ø28	Ø28
Main dimensions	A	2220	2000	1800	2700	2500	2300	3500	2950	2700
	B	3120	3000	2800	3700	3150	2900	4700	4100	3300
	C	2300	2200	2100	2700	2600	2350	3500	3400	3300
	D	2700	2600	2500	3200	2900	2800	4700	4200	3900

Prev：Four rope double flap grab

Next：Double cable multi flap grab
